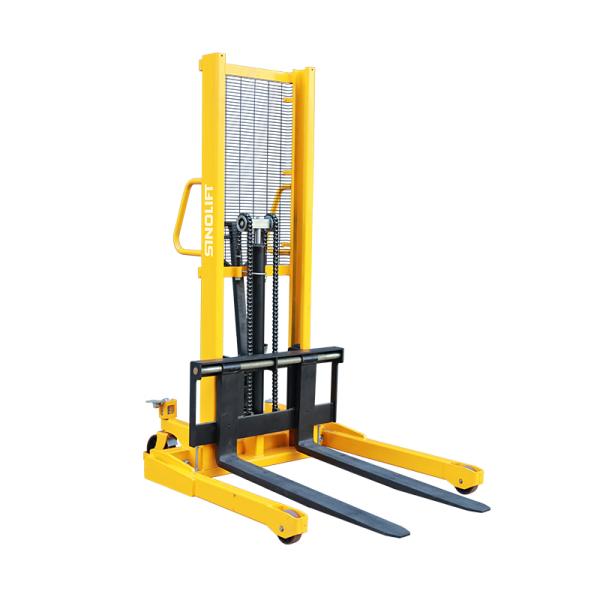

SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs

Name: SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs
Brand: SINOLIFT
Price: 1 USD

Quality SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs for sale

Brand Name : SINOLIFT

Model Number : SFH22AG

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000 sets/mouth

Delivery Time : 15 days

Packaging Details : Sandard Export Package

Product name : SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs

Driving style : Pedestrian

Load Capacity : 1000kg

Net weight : 386kg

Warranty : 1 year

After service : on-line service,free spare parts

Contact Now

Product Name

SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs

This Manual Hydraulic Stacker delivers 1000 kg of robust lifting with a reinforced steel construction and export-grade durability. Its adjustable straddle legs adapt to diverse pallet types, while the compact design excels in narrow aisles and warehouses. Ideal for manufacturing, logistics, and storage facilities seeking efficient, space-saving material handling.

Key Features of SFH22AG Manual Hydraulic Stacker:

Heavy-Duty Construction: Built with 6-8mm reinforced steel and a straddle leg design for maximum stability and long-term durability under heavy loads.

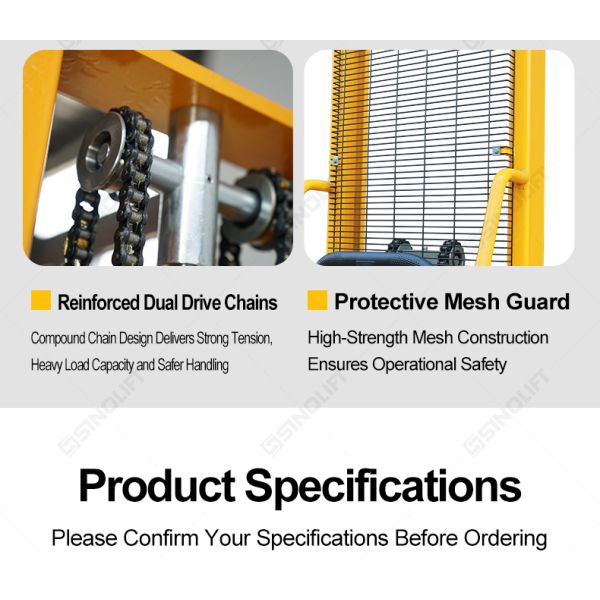

High Lifting Performance: Equipped with a sealed hydraulic cylinder and dual reinforcement chains, enabling smooth and reliable lifting up to 3 meters.
Excellent Adaptability: Features width-adjustable forged forks (215–850mm) compatible with various pallet types, including stringer, double-face, and nine-leg pallets.
Operator-Friendly Design: Includes an ergonomic handle, foot pedal lifting, and PU swivel casters with a foot brake for effortless and safe operation.
Enhanced Safety: Designed with a protective mesh guard, anti-leak cylinder, and robust C-type steel mast to ensure safety in diverse working environments.

Product Specifications

SFH Series - Straddle Leg Stacker
Model		SFH22-63	SFH22-98	SFH22-118
Load Capacity	kg	1000	1000	1000
Load Center Distance	mm	500	500	500
Max Lifting Height	mm	1600	2500	3000
Mast Type		1	2	2
Lowered Height	mm	70	70	70
Fork Length	mm	920	920	920
Single Fork Width	mm	100	100	100
Adjustable Fork Width	mm	215~850	215~850	215~850
Inner Leg Width	mm	915~1220	915~1220	915~1220
Outer Leg Width	mm	1090~1370	1090~1370	1090~1370
Overall Length	mm	1420	1420	1420
Overall Width	mm	1370	1370	1370
Overall Height	mm	2020	1770	2020
Front Wheels	mm	Φ125x50	Φ125x50	Φ125x50
Rear Wheels	mm	Φ180x50	Φ180x50	Φ180x50
Net Weight	kg	320	360	386

SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs

SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs Images
